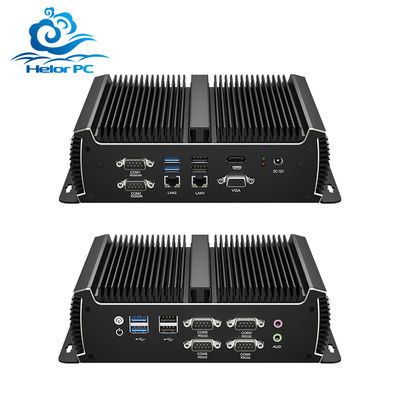

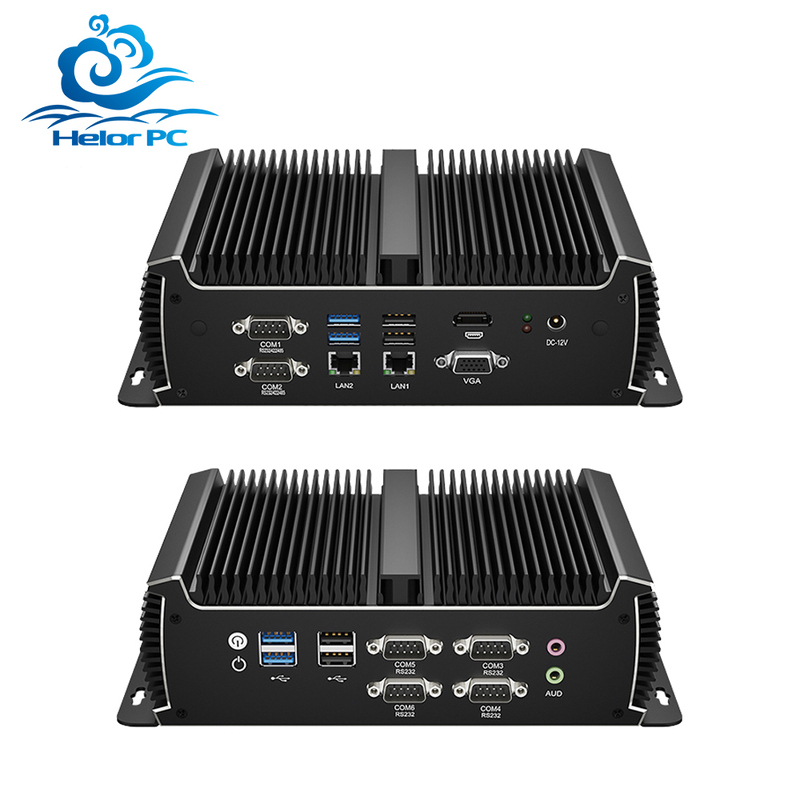

Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments

الاسم التجاري: HelorPC
الـ MOQ: 1
معلومات مفصلة
مكان المنشأ:
قوانغدونغ ، الصين
نموذج وحدة المعالجة المركزية:
إنتل كور I5-4200u
ذاكرة التخزين المؤقت لوحدة المعالجة المركزية:
3M
سرعة وحدة المعالجة المركزية:
ما يصل إلى 2.30 جيجا هرتز
أنوية وحدة المعالجة المركزية:
2 كور 4 خيوط
وحدة المعالجة المركزية TDP:
15W
طراز وحدة معالجة الرسومات:
إنتل HD الرسومات 4400
دقة VGA:
1920 * 1080 عند 60 هرتز
دقة الوضوح العالي:
4096*2304@24 هرتز
نوع رام:
DDR3L 1333/1600 ميجا هرتز
فتحات ذاكرة الوصول العشوائي:
2 * DDR3L سوديم
ماكس رام:
16 جيجابايت
فتحات التخزين:
1 × إم ساتا + 1 × 2.5 بوصة ساتا
موانئ LAN:
2x 10/100/1000 ميجابت في الثانية
منافذ USB:
3x USB2.0، 4x USB3.0
منافذ تسلسلية:
4x RS232، 2x RS232/RS422/RS485
إبراز:

Intel Core i5-4200U Industrial PC,Aluminum Chassis Embedded Computer,Compact Size Mini PC

,

Aluminum Chassis Embedded Computer

,

Compact Size Mini PC

وصف المنتج
Fanless Aluminum Small Industrial Computer Intel Core I5 4200U 2 Network Card RJ45 LAN 6 RS232 RS422 RS485 Embedded Mini PC
Product Overview
Technical Specifications
Processor Intel Core i5 4200U Processor, 3M Cache, up to 2.30 GHz, 2 Core 4 threads, TDP:15W
Display
  • GPU: Intel HD Graphics 4400
  • VGA: Maximum resolution 1920*1080@60Hz
  • HD: Maximum resolution 4096*2304@24Hz

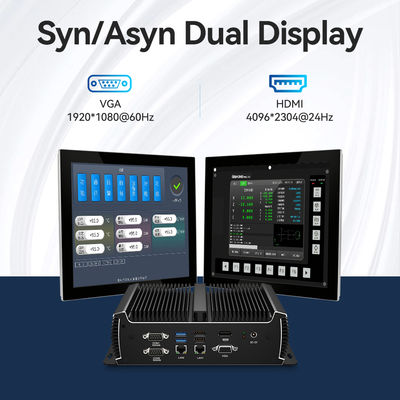

  • Dual display: VGA + HD, Support for Synchronous or Asynchronous Display
Memory
  • 2GB/4GB/8GB DDR3L 1333/1600MHz 1.35V
  • 2*DDR3L SODIMM slot
  • Maximum capacity: 16G
Hard Disk
  • SSD: 1*Full Height mSATA socket, 60GB/120GB/240GB/500GB mSATA SSD
  • HDD: 1*SATA. Connect by SATA data/power cable
Support OS Official Win8/Win10 | ubuntu/LINUX/CENTOS
Ports
  • 3xUSB2.0
  • 4xUSB3.0
  • 1xVGA
  • 1xHD
  • 2xLAN

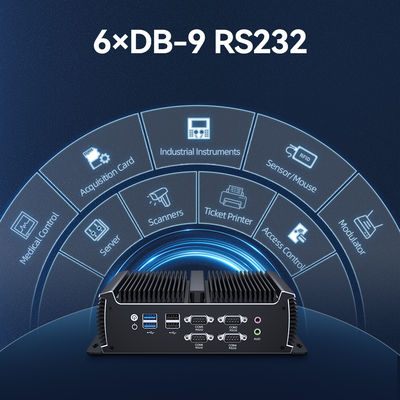

  • 4x RS232 COM
  • 2x RS232/RS422/RS485 COM
  • 1xMIC 1xSPK
LAN Intel I225V 2.5G NIC Ethernet, support wake on lan
Audio Main system: Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension 1×Mini PCIE support WIFI/BT module 1×Mini PCIE support 3G/4G/WIFI module
Power Requirement DC 12V 6A
Working Environment
  • Operating Temperature -20℃-65℃
  • Storage Temperature -30℃-70℃
  • Relative Humidity 5%~95% (non-condensing)
Dimension 240mm*150mm*69mm
Package Contents
  • 1 x Mini PC
  • 1 x User manual
  • 1 x Power Cord
  • 1 x SATA data and power cable
Important Notice: The price shown is for the no RAM, no SSD, no WiFi mini PC configuration. If you need RAM/SSD/WiFi, please contact us.
Company Profile
Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments 5

Shenzhen Helor Cloud Computer Co,. Ltd (HLY), located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer. We've developed more than 50 kinds of products, applied in different fields for AI, office working, education, entertainment, advertising, transport, military, industrial, etc.

Our mini PCs have sold in more than 60 countries and regions, with annual sales exceeding one million units. HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control.

Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments 6

We have more than 100 employees. Our experienced technical group, reliable sales department and responsible production team constitute the backbone of our enterprise. Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments 7
Packaging & Shipping
Power Adapter

We have multiple specifications of power supplies, which are selected by default based on your shipping address. If you have special demands, please contact us.

Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments 8
Payment Methods

We support L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments 9
Packaging

We carefully wrap the mini PC and parts with a waterproof bag, then fix it in the inner carton box with a foam board. The inner box is placed into the outer box, which is then sealed with tape.

Shipping Methods

Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation (choose as you prefer).

Frequently Asked Questions
1. How about the warranty?

The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.

2. Can I print my logo on your mini PC?

Yes, please provide your logo file, and we will confirm the design effect to you before production. We also do OEM/ODM.

3. What is the MOQ?

We can sell one sample for your test.

4. How long will the package be ready after I buy the mini PC?

It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. For more information please check with us.

5. Are your mini PCs in stock?

Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
