الكمبيوتر الصناعي
Created with Pixso. HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications

HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications

الاسم التجاري: HLY
الـ MOQ: 2
السعر: $420.10
معلومات مفصلة
مكان المنشأ:
قوانغدونغ ، الصين
إصدار الشهادات:
ce
نموذج وحدة المعالجة المركزية:
i7 7500U، i5 7200U، i3 4005U
أنوية وحدة المعالجة المركزية:
2-4 نوى
خيوط وحدة المعالجة المركزية:
4-8 خيوط
تردد وحدة المعالجة المركزية:
1.7 جيجا هرتز-3.5 جيجا هرتز
نوع رام:
DDR4 2133/2400 ميجا هرتز
فتحات ذاكرة الوصول العشوائي:
2 * SO-DIMM
ماكس رام:
32 جيجابايت
فتحات التخزين:
2 * ساتا، 1 * مساتا
عرض القرار:
عالي الوضوح 4096*2304@24 هرتز، VGA 1920×1080@60 هرتز
سرعة الإيثرنت:
10/100/1000 ميغابت في الثانية
مدخلات الطاقة:
تيار مستمر 12 فولت 5 أمبير/60 وات
درجة حرارة التشغيل:
-20 درجة مئوية إلى +65 درجة مئوية
استهلاك الطاقة:
15W
نظام التبريد:
بدون مروحة
مادة الحالة:
سبيكة الألومنيوم
إبراز:

RS232 Industrial Mini PC,MSATA Fanless Industrial Computer,Compact Size 182x126x63mm Embedded Computer

,

MSATA Fanless Industrial Computer

,

Compact Size 182x126x63mm Embedded Computer

وصف المنتج
HLY Mini PC - Industrial Fanless Computer

High-performance industrial mini PC featuring Intel Core processors, dual Gigabit Ethernet, multiple display outputs, and fanless aluminum alloy design for reliable operation in demanding environments.

Technical Specifications
Processor Options
  • Intel Core i7 7500U (2 core/4 threads, 2.7GHz-3.5GHz, 15W TDP)
  • Intel Core i5 7200U (2 core/4 threads, 2.5GHz-3.1GHz, 15W TDP)
  • Intel Core i5 8350U (4 core/8 threads, 1.7GHz-3.6GHz, 15W TDP)
Graphics & Display
  • Intel HD Graphics 620

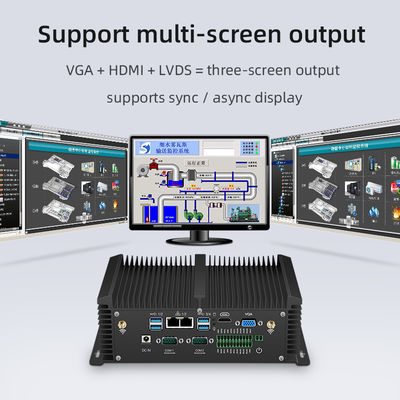

  • HDMI max resolution: 4096×2304@24Hz
  • VGA max resolution: 1920×1080@60Hz
Memory & Storage
  • 2×260-pin SO-DIMM slots (DDR4 2133/2400MHz)
  • Supports up to 32GB RAM
  • 2×SATA ports + 1×full-height mSATA socket
Connectivity
  • Dual Gigabit Ethernet (Realtek 8111F)
  • Wake on LAN support
  • 8×USB ports
  • RS232 serial port
Power & Environment
  • DC 12V 5A/60W input (100-240V AC/DC)
  • Operating temperature: -20°C to +65°C
  • Storage temperature: 15°C to 35°C
  • Humidity: 5% to 95% (non-condensing)
  • Power consumption: 15W
Physical Design

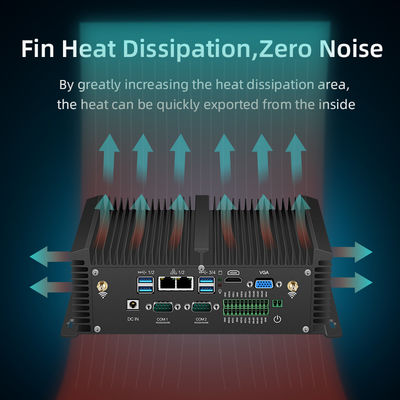

  • Fanless cooling system
  • Brushed aluminum alloy casing
  • Protective film on surface
OS Support Windows 8/10, Ubuntu, Linux, CentOS
Package Contents
  • 1× Mini PC
  • 1× Power adapter
  • 2× WiFi antennas
  • 1× SATA power & data cable
  • 1× VESA mount
  • 1× User manual
Warranty

1-year warranty with free repair service. Second and third year offer free repair with parts replacement costs.

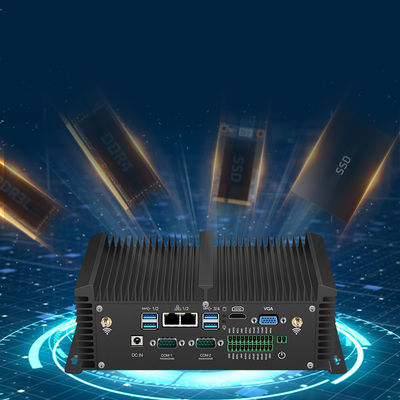

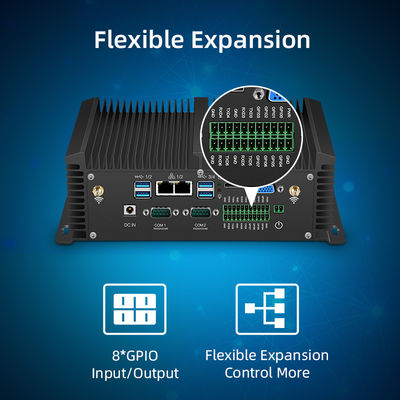

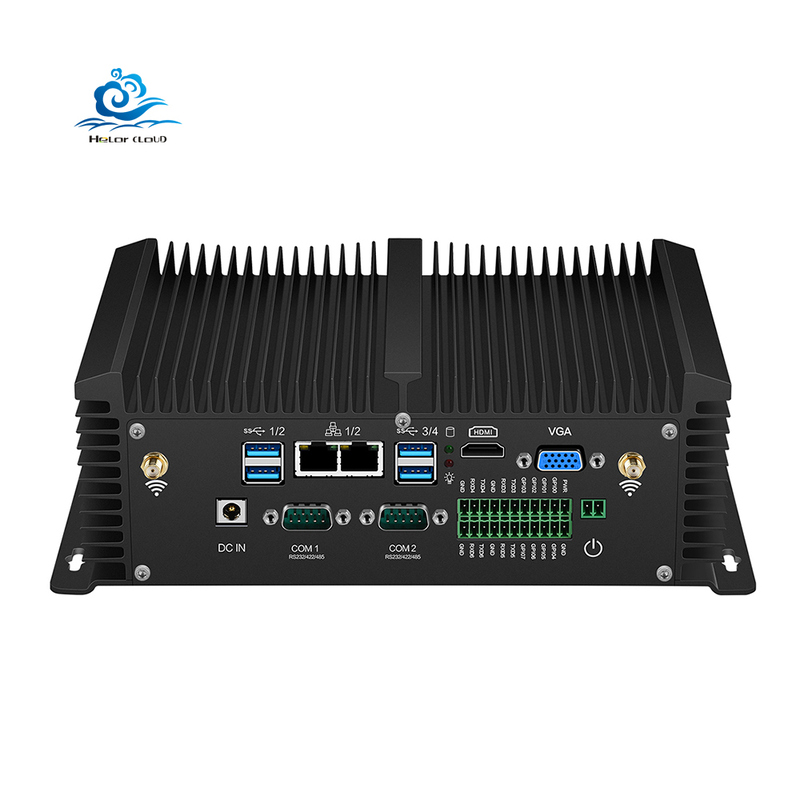

Product Images
Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY), located in Shenzhen, Guangdong, has specialized in mini computers since 2013 with our own professional motherboard manufacturer. We've developed over 50 products applied in various fields including AI, office, education, entertainment, advertising, transport, military, and industrial applications.

Our mini PCs are sold in over 60 countries with annual sales exceeding one million units. We carry components from over 20 manufacturers, allowing us to offer leading-edge technology at competitive prices.

HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications 7 HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications 8 HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications 9
Packaging & Shipping
Power Adapter

Multiple specifications available, selected by default based on shipping destination (EU, UK, US, AU, Brazil, etc.). Contact us for special requirements.

HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications 10
Payment Methods

L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Shipping Options

DHL, FedEx, UPS, Aramex, post and Alibaba (choose as preferred).

Frequently Asked Questions
What is the warranty policy?

First year: free repair service. Second and third year: free repair with parts replacement costs.

Can I print my logo on the mini PC?

Yes, please provide your logo file. We will confirm the design before production. OEM/ODM services available.

What is the minimum order quantity?

We can sell single units for testing purposes.

How long does packaging take?

Approximately 3 days for inspection and assembly. 10 units ship in ~3 days, 50 units in ~8 days.

Are your mini PCs in stock?

Most models are in stock. Please confirm inventory before ordering.
